More Home Theater Updates



 With sound advice, the closets are done.                                June 07

        With a little help from my daughter and father-in-law the closets are finally done. I had seen the doors a the local shop and wanted to emulate that look. I decided to put shelves in the closet for blankets and stuff. Initially, I was going to make them solid wood, but after studying acoustics a little, it became apparent the wire shelves would work better. (Yes, I already bought that wood, too.) I only found white shelves, and painted them black. The paint took a month to dry, I guess it reacted to the vinyl coating. I thought the European hinges would be the best, as they would allow the doors to fit tightly. I had originally designed the doors with the spine segmented, but my father-in-law saw my plans and suggested a redesign. Fortunately, I had purchased the wood, but not cut it. I used birch, as pine was too knotty and warp-prone. I painted the frames black and covered them in black GOM. After a little trimming I got them up. I thought about Art Deco doorknobs, but decided against calling attention to the doors. Instead, I used white plastic U-shaped handles spray-painted flat black. I removed the speaker grilles. put them back in, and everything looks and sounds great.

Cutting hinge hole with Forstner bit

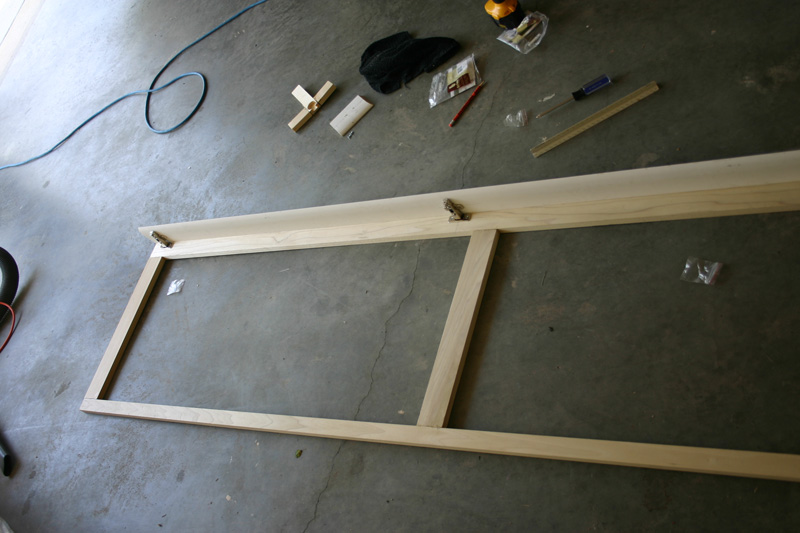

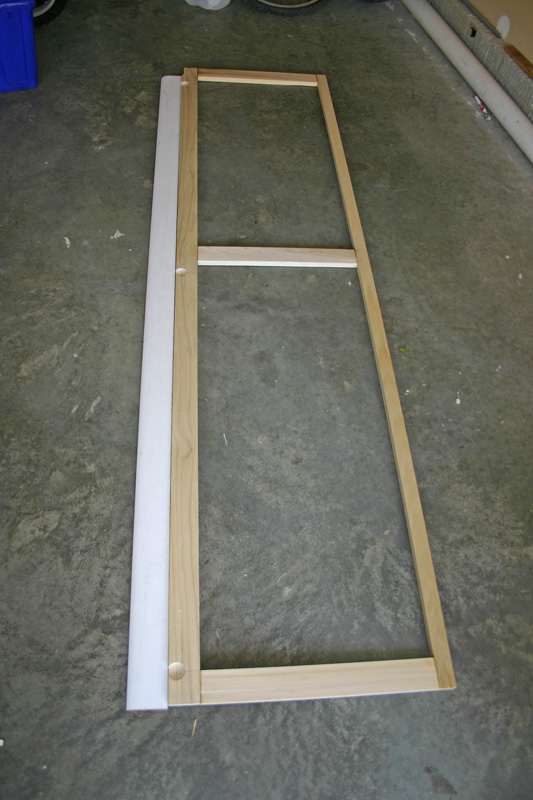

Simple door design; 1x2 and 1x3 poplar

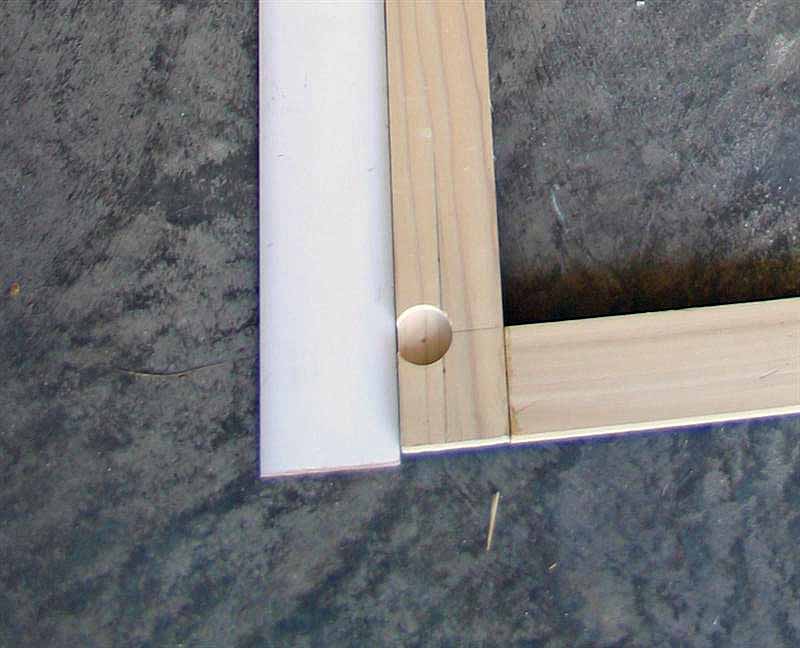

Doweled together

Found out later glue is NOT for wood!

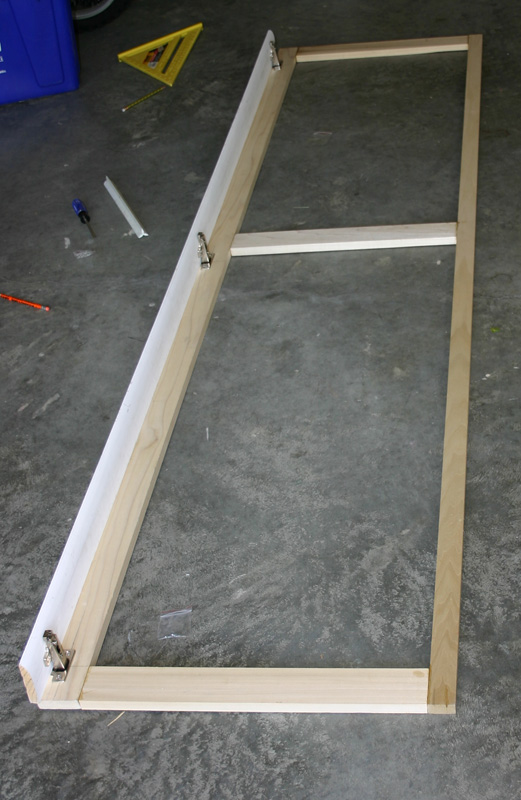

Shoe moulding for "frame" mounted



Same shot, with flash

Closeup of hinge



Door mounted...

...required lots of trimming

but it's up now

Painted black (really, just less white.)



Left door and jamb

Detail of hole for European hinges

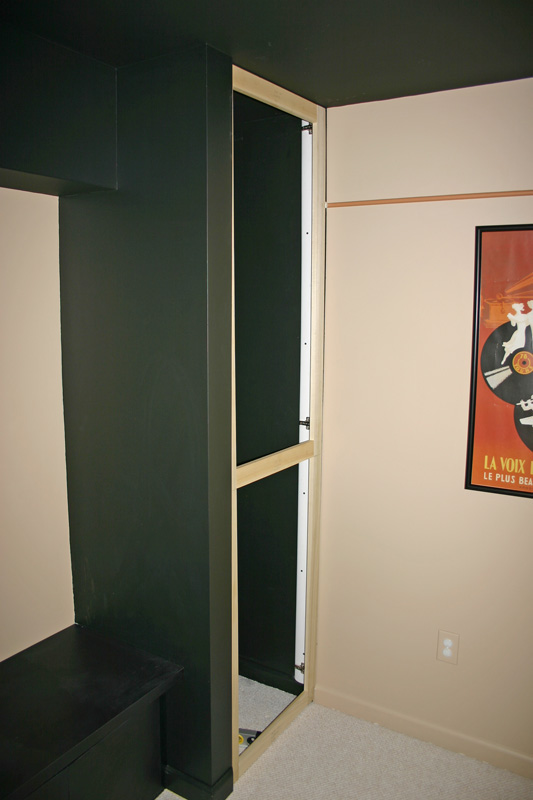

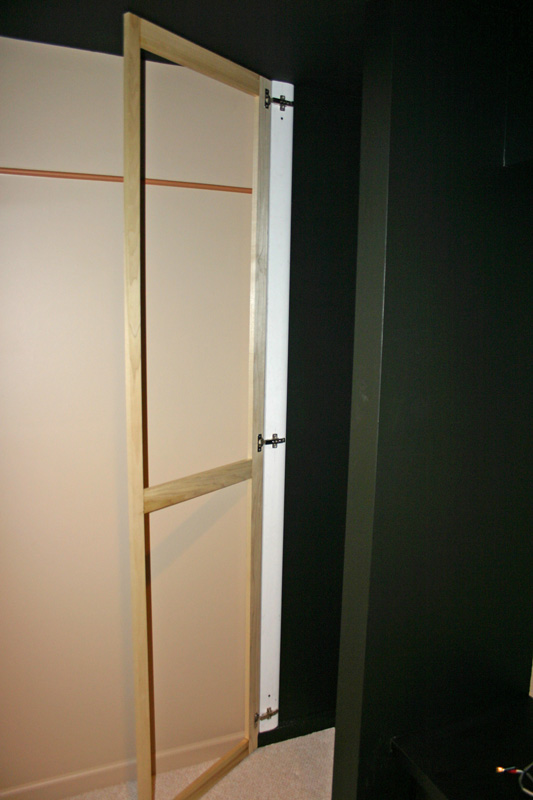

Door test fit.

Door in place

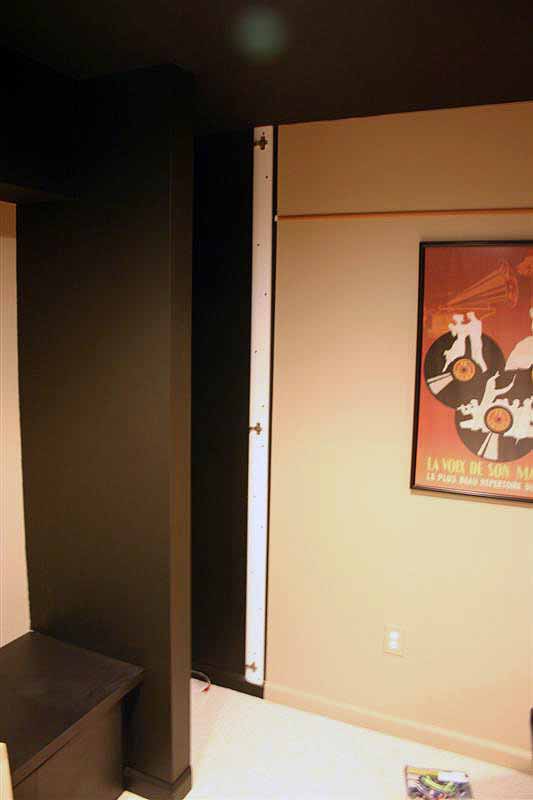

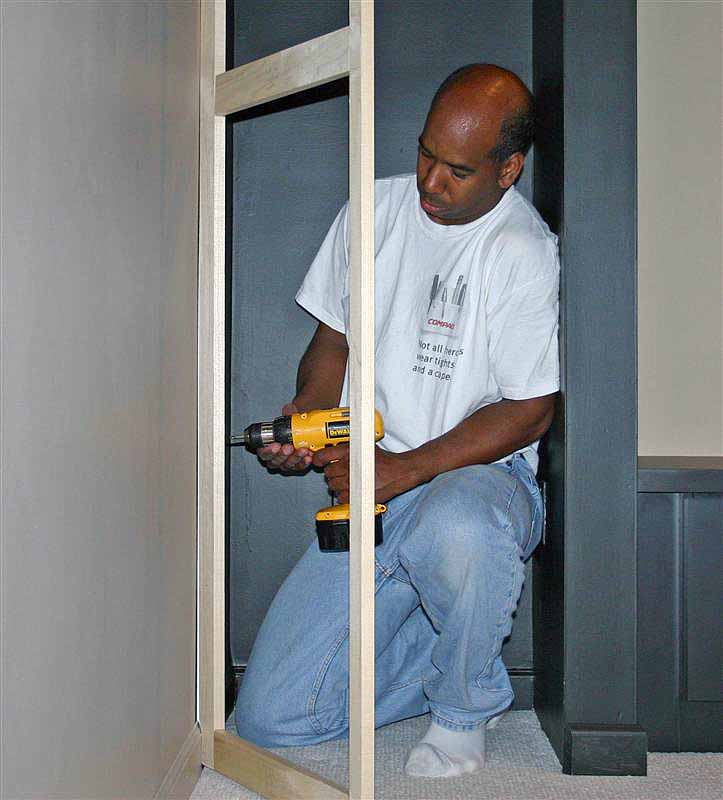

Mounting jamb

(Gee, looks level from here!)

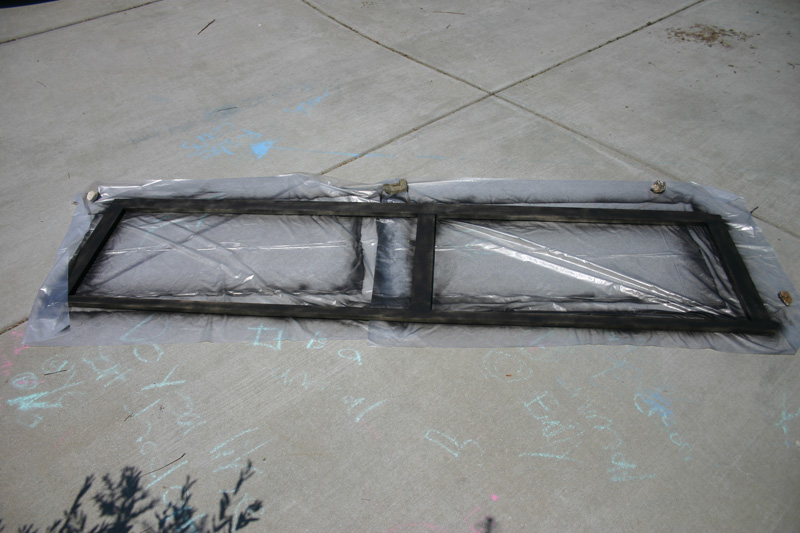

Both painted

Closetmaid shelves painted black

Left door test fit again

Right door test fit again

Both up, waiting for GOM

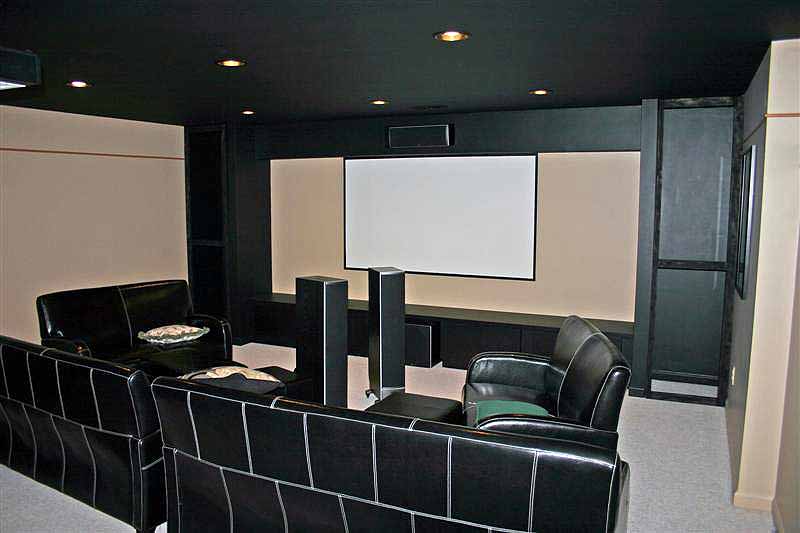

(grainy) Photo of completed doors

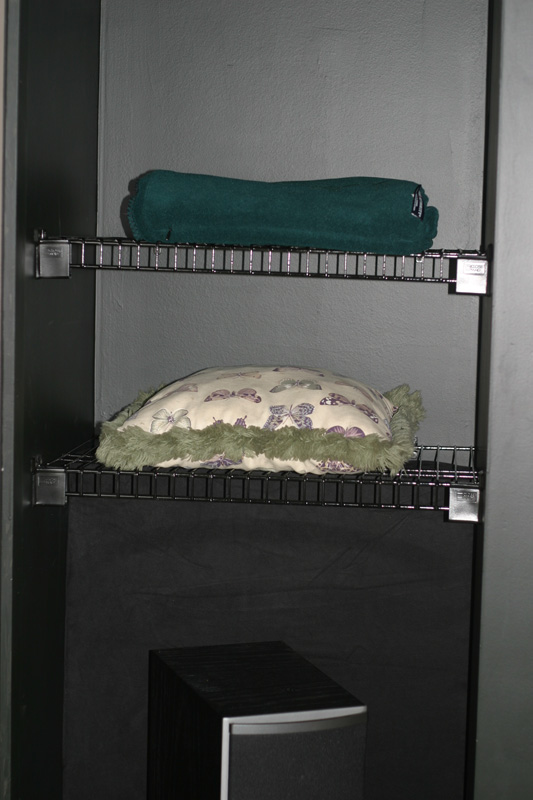

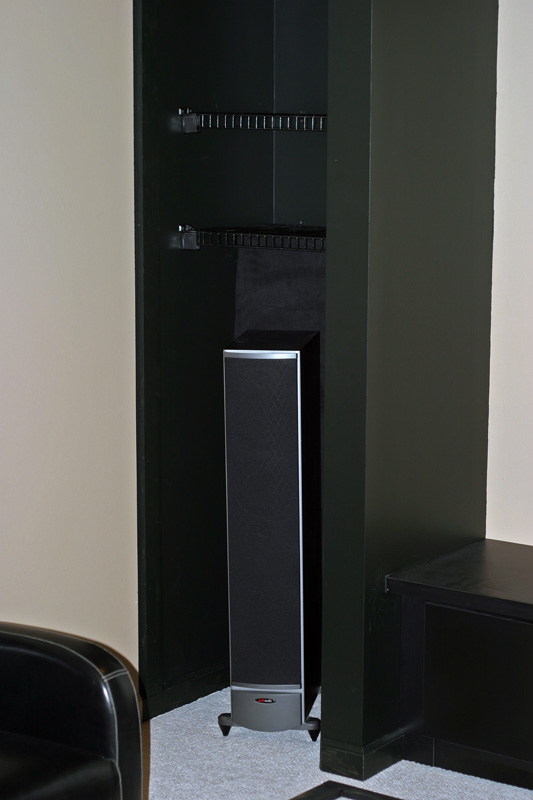

Shelves installed

Speaker back in

Other side

Loaded

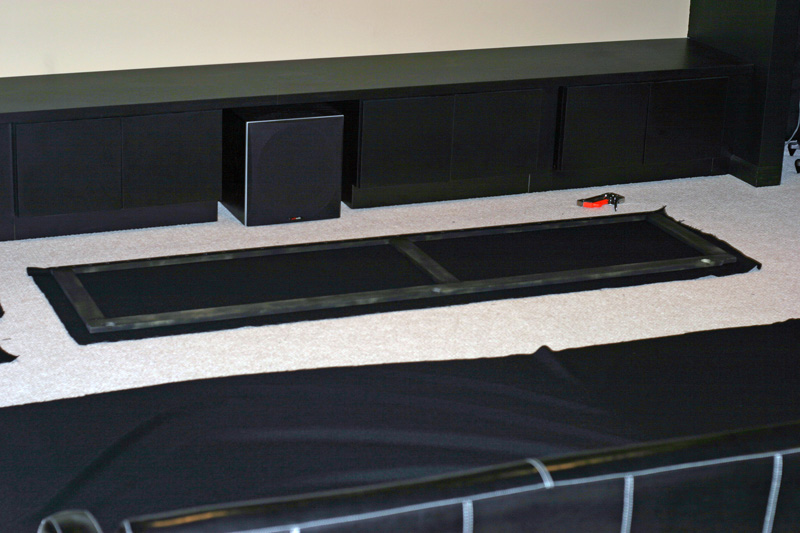

GOM laid out

Frame on

Lining up

Stapling

Measuring other side

Trimmed up

Folding corners

One done

Hinge ready

Help from my daughter

All done

Handle mounted

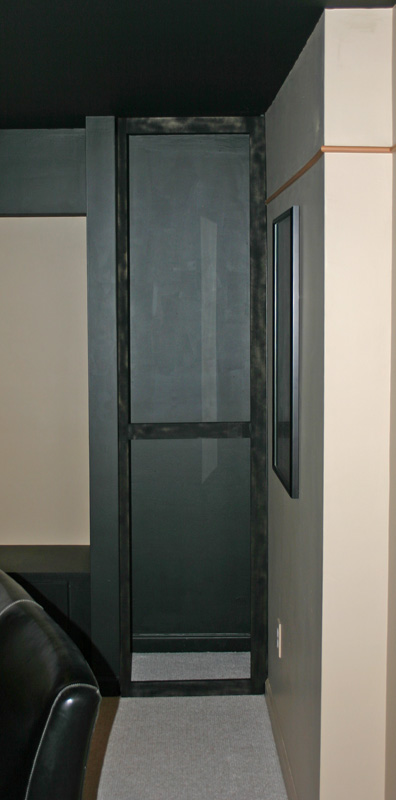

Left door

Right door
