I finally used the tools
December 09
One of the things I always wanted to do is calibrate my
projector. This holiday break I finally got the chance.
For measuring I have an i-1 Display LT colorimeter feeding

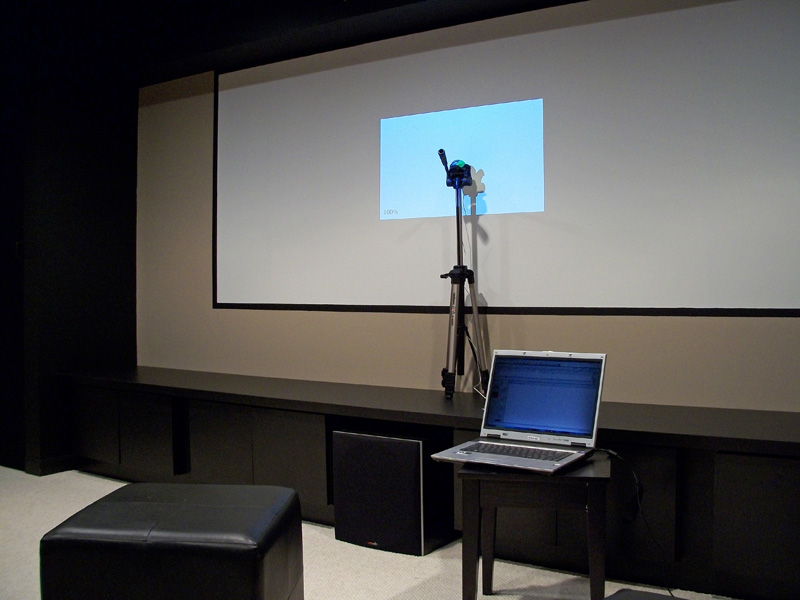

HCFR Colorimeter software V 2.1. I taped the meter to a tripod and placed it on
the counter below the screen. My Laptop is an MPC T2500 running Windows 7.
Initial Menu Settings
|
Picture |
|
Setting |
Value |
|
Picture Mode |
Standard |
|
Contrast |
-5 |
|
Bright |
+1 |
|
Color |
1 |
|
Tint |
0 |
|
Sharp |
0 |
|
CLR Temp |
6500 |
|
Gamma Position |
Standard |
|
Iris |
High Contrast |
|
Lamp Setting |
Eco + Quiet |
|
CMS Hue |
|
Red |
0 |
|
Yellow |
0 |
|
Green |
0 |
|
Cyan |
0 |
|
Blue |
0 |
|
Magenta |
0 |
|
CMS Saturation |
|
Red |
0 |
|
Yellow |
0 |
|
Green |
0 |
|
Cyan |
0 |
|
Blue |
0 |
|
Magenta |
0 |
|
CMS Value |
|
Red |
-5 |
|
Yellow |
-10 |
|
Green |
-10 |
|
Cyan |
0 |
|
Blue |
0 |
|
Magenta |
0 |
|
Brilliant Color |
Off |
|
DNR |
Off |
|
MNR |
Off |
|
Unveil Control |
Off |
|
Automatic Contrast |
Off |
|
Gamma |
|
Setting |
Value |
|
Gamma Position |
Standard |
|
Gamma |
|
Red |
0 |
|
Green |
0 |
|
Blue |
0 |
|
White Detail |
|
Red |
0 |
|
Green |
0 |
|
Blue |
0 |
|
Black Detail |
|
Red |
0 |
|
Green |
0 |
|
Blue |
0 |
|
Options |
|
Setting |
Value |
|
Lamp Life |
204 hours |
|
Signal Type |
YCbCr 4:2:2 |
|
Dynamic Range |
Enhanced |
With the meter located in the middle of the screen (approximately) I got a Y=~16

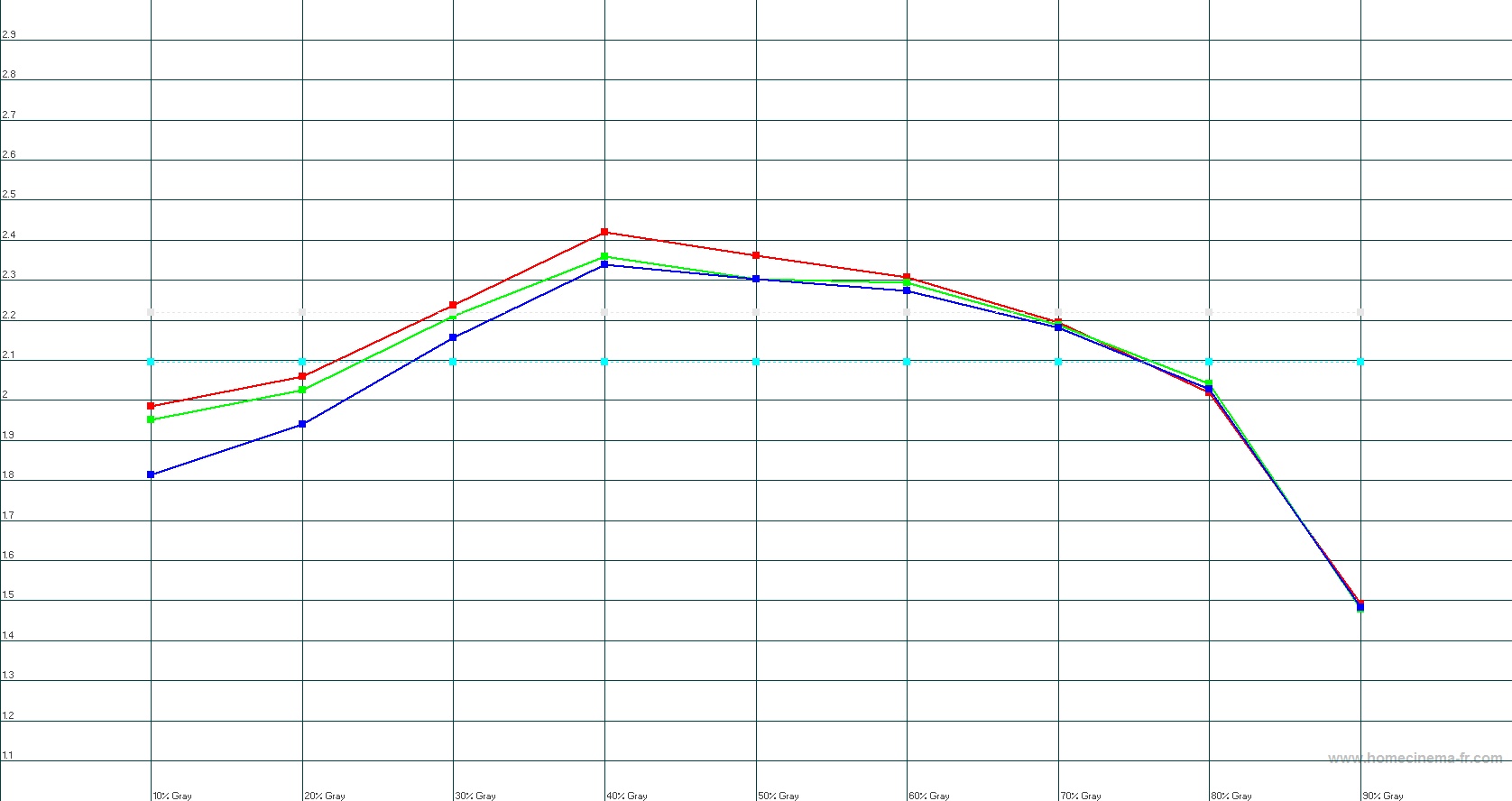

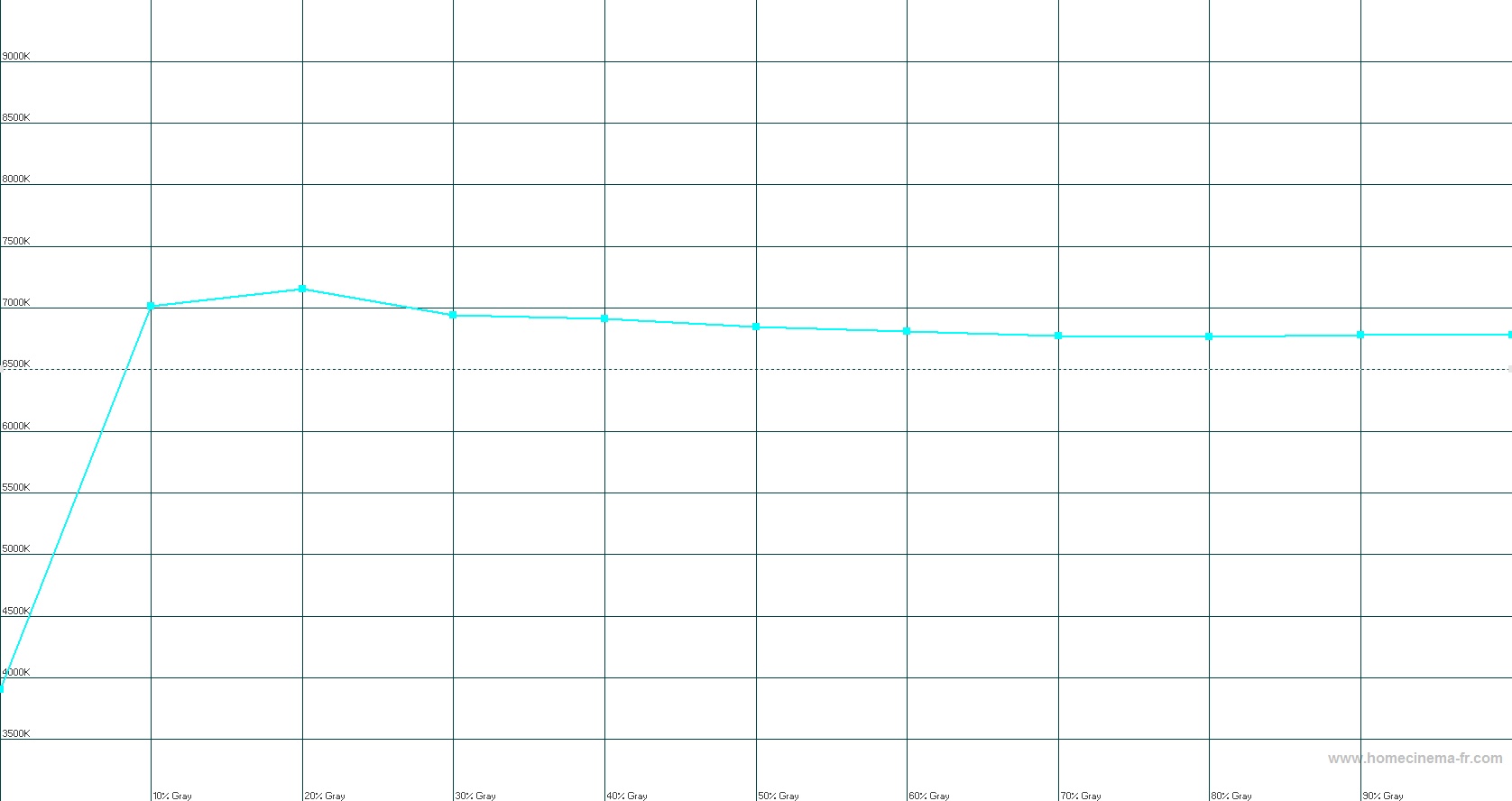

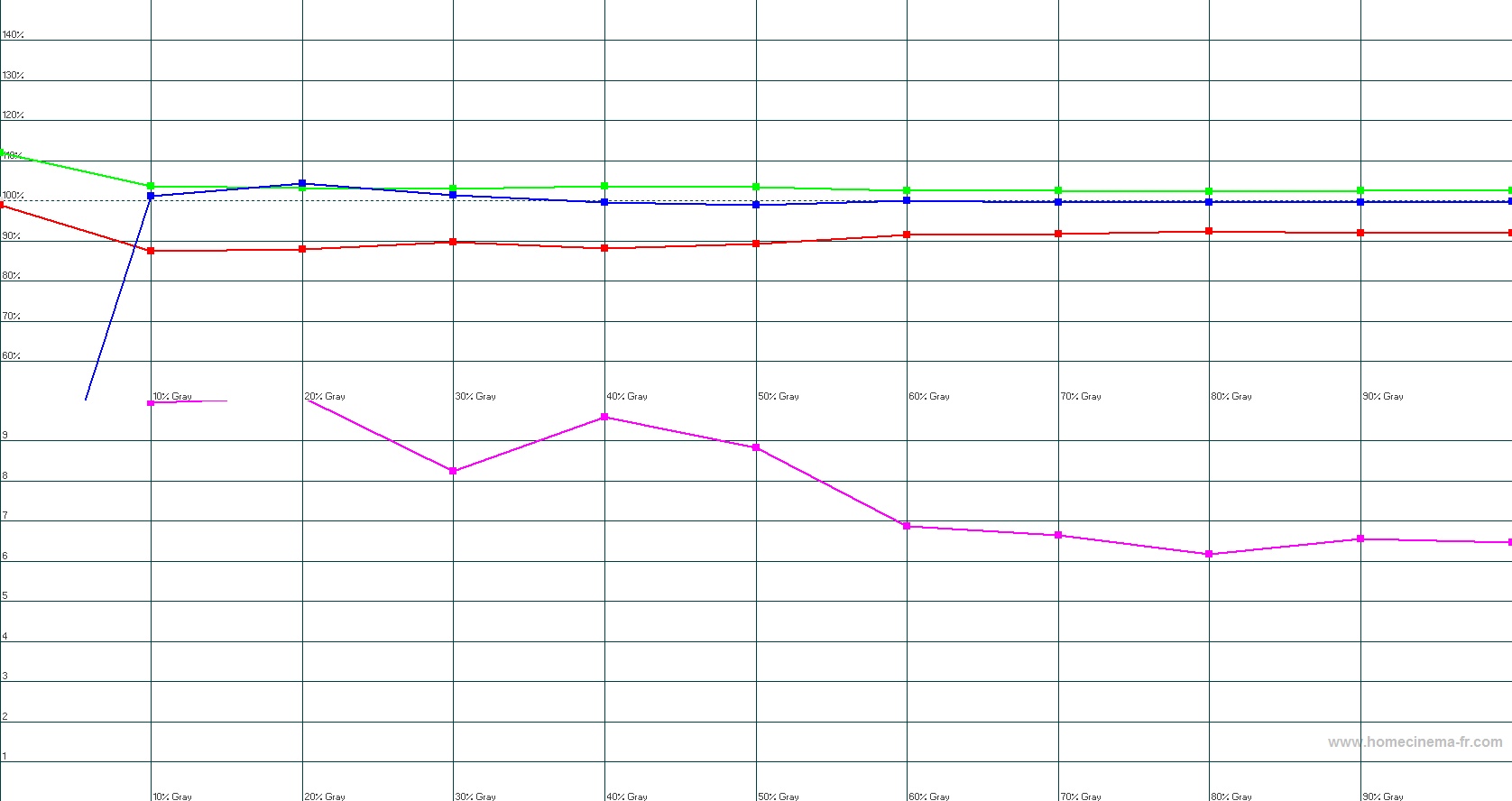

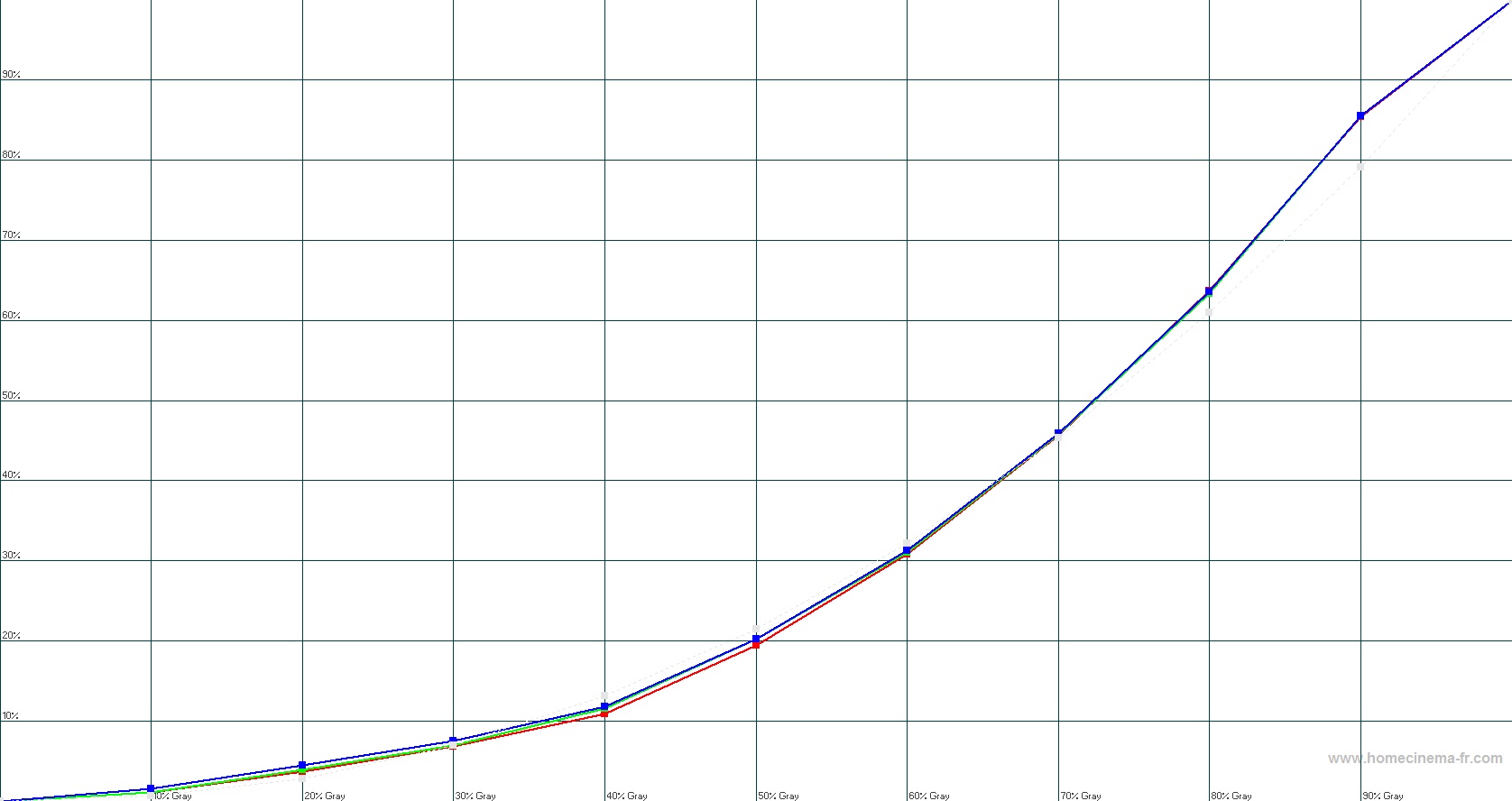

for a brightness of 4.678 ftL. Here are the initial graphs and tables from HFCR.
 |
 |
 |
 |
 |
| Color Temp |
Gamma |
Luminance |
RGB |
CIE |
|
